Armstrong Model Range: Row Punts
As part of our policy in evolving our design range, in 1996 we developed the 2.4m
(8ft) Row-Punt after having seen the 'near perfect shape’ on the lake of the Garsington Estate in
1996. This Row-Punt was developed especially for those who have a few acres of water on their
property.
Subsequently many other applications needing a light strong hull emerged, such as for the
emergency services in flood situations, shooting & fishing syndicates, light general maintenance of waterways
and access to islands. The Row Punt's specially sculpted bow is most effective in controlling the bow wave and
at the same time preventing the bow from digging down when slowing off the plane.
Lastly our most recent ‘baby’ ... the Flood-Rescue-Punt for urban emergencies.. The range
has features borrowed from our Work-Boat & Fish-Punt designs (available in at least six sizes up to
20ft) also made from marine grade aluminium. Where a possible application
requires a craft of more substantial construction, ask for
details of the alternatives described in our other sections. We believe we have the experience to
advise on the right craft for the job and to be able to incorporate special features any customer may
need.
Benefits |
Versatility of use: |
- Easily transportable by trailer or
on roof rack.
- Lightweight high strength
construction.
- Minimal maintenance aluminium alloy to
BS5083.
- Shallow draught
unladen.
- Exceptional stability from flat
bottom.
- Rugged durable and
abuseable.
|
- To assist weed
removal.
- Car toppable on good roof rack.
- Light maintenance duties.
- Smallscale
ferry.
|
Features: |
Optional Extras: |
- Inside depth 360mm (14") to
enhance load carrying capacity.
- Hollow beam gunwale (50x40
extrusion).
- Internal floor is covered with non slip
paint.
- Thwarts either of parana pipe or
incorporating foam buoyancy to satisfy RCD egulations (cat D) on hulls over 2.5m
length.
- Either lining inside faces of side plus
one central thwart OR as blocks under three thwarts.
- The bottom is protected with ali
runners.
- Galvanised rowlocks and mooring
ring.
|
- Chandlery inc personal buoyancy
aids
- Marine ply internal
floor.
- Exterior
painting
- Seat
cushions
- Oars
- Petrol / Electric
outboards
- Remote steering
position.
- Light
trolleys.
|
Models:
MODEL
|
NAME
|
Length
|
Hull Weight
|
Passenger Capacity
|
Price *
|
ACORP
|
Coracle
Punt |
2.05 m (6' 7")
|
33 Kg (72 lbs)
|
1
|
£785
|
ARP8
|
row punt
8 |
2.43 m (7' 9")
|
39 Kg
(85 lbs)
|
2
|
£989
|
ARP10
|
row punt
10 |
3.05 m (10')
|
48 Kg
(106 lbs)
|
2
|
£1,265
|
ADP12
|
duck punt
12 |
3.66 m (12')
|
63 Kg (140 lbs)
|
3
|
£1,470
|
AFRP10
|
flood rescue punt
10 |
3.05 m
(10')
|
75 Kg (165 lbs)
|
3
|
£1,470
|
other sizes to special order - POA
|
* All prices are Excluding VAT
Fabrication

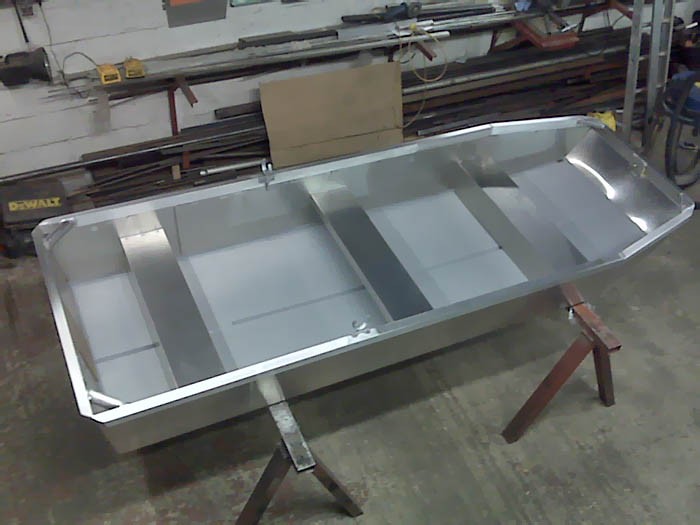

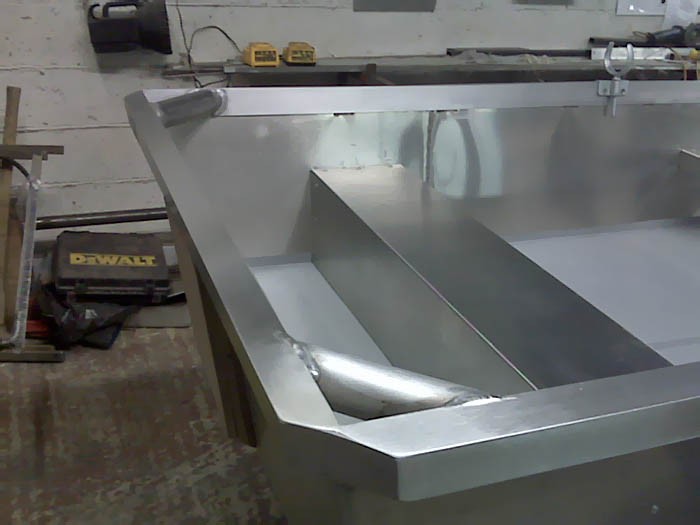

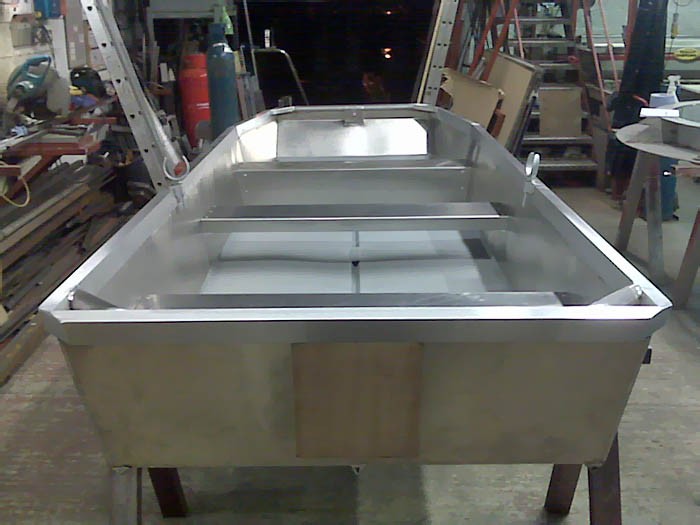

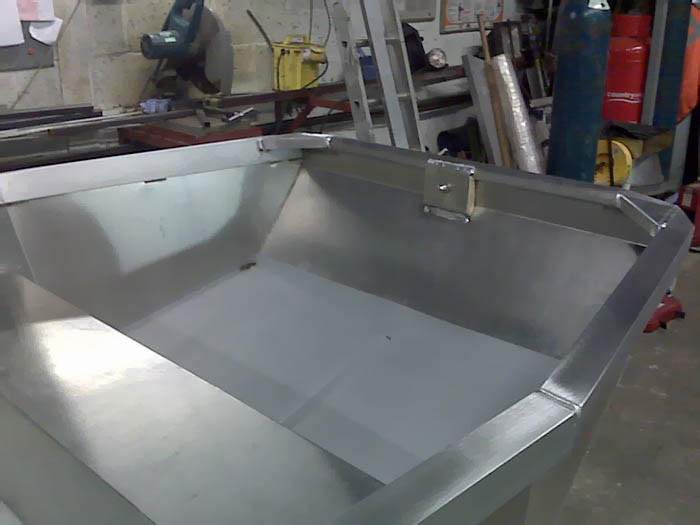

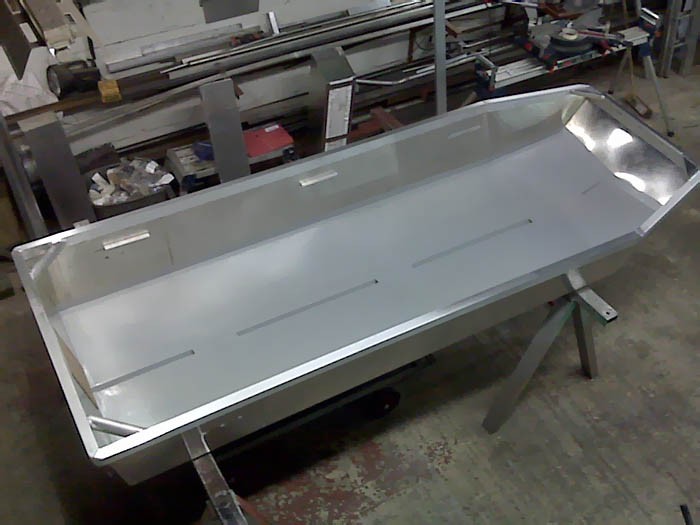

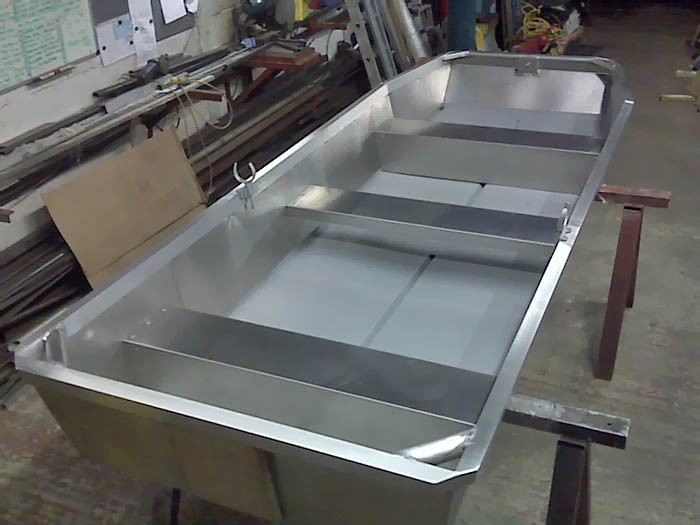

12 foot rowpunt fabrication
12 foot rowpunt fabrication
12 foot rowpunt fabrication
12 foot rowpunt fabrication
12 foot rowpunt fabrication
12 foot rowpunt fabrication

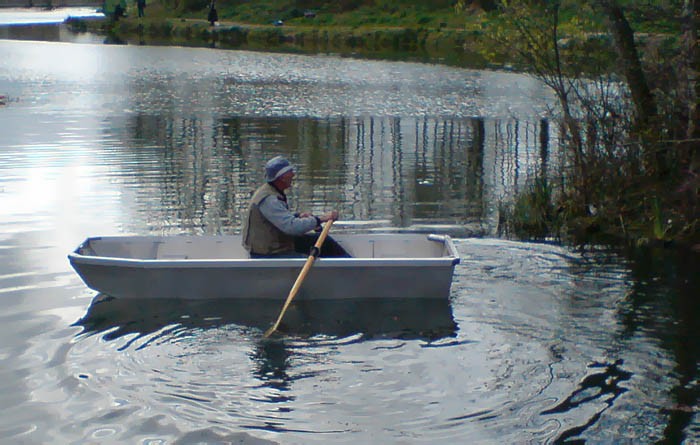

12 foot rowpunt on the water
