Armstrong Model Range: Work Boats

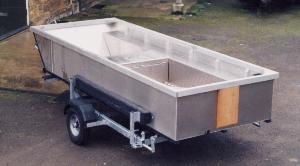

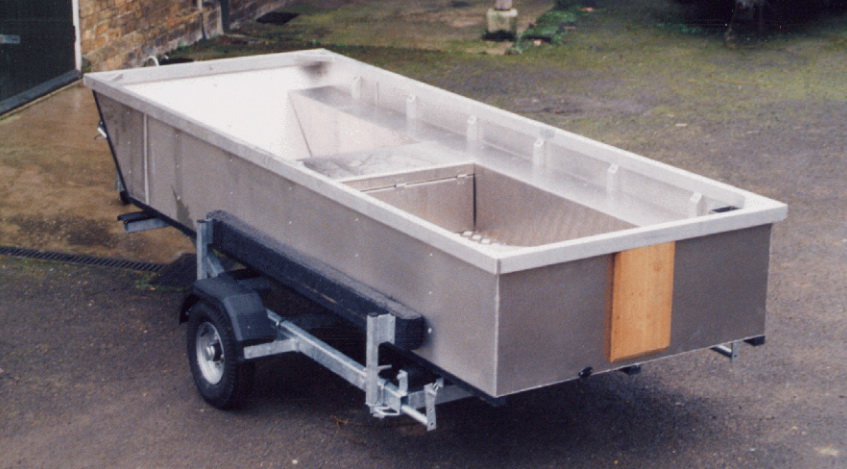

AWB10/4 on trailer

For over forty years our Transportable Work-Boats have been supplied to customers all over the UK which have included water undertakings like the Environment Agency, five of the Royal Parks, local authorities, fisheries and estates of all kinds. They are made from marine grade aluminium using TIG welding techniques. Since inception the design features have evolved in response to comments from our customers and new manufacturing methods & materials.

Our range is now offered with two sizes in terms of beam width, with overall length being the other determining factor.  Other sizes are perfectly possible and should be the subject of special enquiry. The aim with these  designs is a product that is sturdy, rugged, relatively light and able to stand up to the labours of heavier use, compared to those used purely for recreational purposes.

Thus as alternatives, refer to the Row-Punts & Row-Boats described in our other sections. We believe we have the experience to advise on the right craft for any job and to be able to incorporate any special features our customers may need.

• Easily transportable by trailer.
• Lightweight high strength construction.
• Minimal maintenance aluminium alloy to BS5083.
• Shallow draught unladen.
• Exceptional stability from flat bottom.
• Rugged durable and abusable.
• Pad for outboard suitable up to 6 hp.

Features:

• Inside depth 450mm (18") to enhance load carrying capacity.
• Hollow beam gunwale (50x40 extrusion).

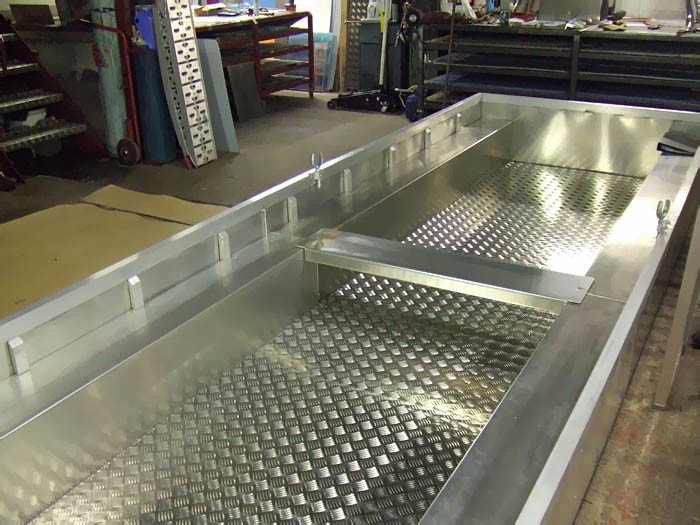

• Internal floor of aluminium tread plate (embossed non slip surface).
• Bridging ribs (40x25 extrusion) placed at approx. 0.5m intervals.
• Foam buoyancy to satisfy RCD regulations.
• Either lining inside faces of side plus one central thwart OR as blocks under three thwarts.
• The bottom is protected by skegs of hard wearing recycled plastic.
• Transom pad for outboards up to 6 hp.
• Galvanised rowlocks and mooring ring.

Optional Extras:

• Marine ply internal floor.
• Aesthetic indulgences such as exterior painting and seat cushions.
• Oars.
• Petrol / electric outboards.
• Light trolleys, road trailers and other general marine chandlery.

Models:

* All prices are Excluding VAT
